Evota 10X HD PTZ Camera – Key Features
-
Full USB Plug & Play Interface:
Supports audio transmission and compressed video output through a single USB connection, ideal for quick video conferencing setups.
-
1080P Full HD Resolution:
Built with a 2.07-megapixel CMOS sensor delivering up to 1920×1080 crystal-clear video quality.
-
Smooth 30fps Video Output:
Ultra-high frame rate ensures lag-free, professional-grade video at 1080P resolution.
-
Excellent Low-Light Performance:
Advanced 2D & 3D noise reduction with high SNR CMOS sensor ensures sharp images even in low-light environments.
-
Remote Camera Control:
Supports RS-232 high-speed communication for remote PTZ control in conference rooms and auditoriums.
-
Advanced H.264 & SVC Encoding:
Optimized for modern USB video conferencing platforms with efficient bandwidth usage.
-
Dual Stream Output:
Simultaneously supports YUY2, MJPEG, and H.264 streams to reduce host decoding load.
the Evota 10X HD PTZ Camera is an ideal solution for
video conferencing, online classrooms, live streaming,
corporate meetings, and professional AV installations.
Evota 10X HD PTZ Camera – Technical Specifications
| White Balance |
Auto, 3000K, 4000K, 5000K, 6500K, One-Push |
| Backlight Compensation |
Supported |
| Color Optimization |
Supported |
| Noise Reduction |
2D & 3D Digital Noise Reduction |
| Video SNR |
≥ 55 dB |
| Horizontal Field of View |
55° |
| Vertical Field of View |
42° |
| Diagonal Field of View |
68° |
| Pan Rotation |
±170° |
| Tilt Rotation |
-30° to 90° |
| Pan Speed |
2.7° – 35.7°/s |
| Tilt Speed |
2.7° – 31.5°/s |
| Preset Positions |
255 |
| Preset Accuracy |
0.1° |
| Power Supply |
DC 12V |
| Power Consumption |
5W (Max) |
| Operating Temperature |
-10°C to 40°C |
| Storage Temperature |
-40°C to 60°C |
| Dimensions |
141.3 × 153 × 163.6 mm |
| Net Weight |
1.153 kg |
| Supported OS |
Windows, macOS, Linux, Android |
| Video Format |
H.264 / SVC / MJPEG up to 1080P@30fps |

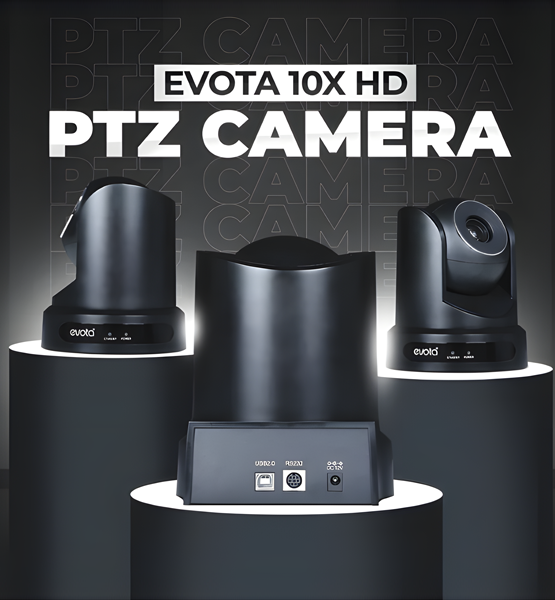

| USB Interface |
USB 2.0 Type-B (UVC 1.0) |
| PTZ Control |
UVC, RS-232 (VISCA / Pelco-D / Pelco-P) |
| Remote Control |
IR Remote |
