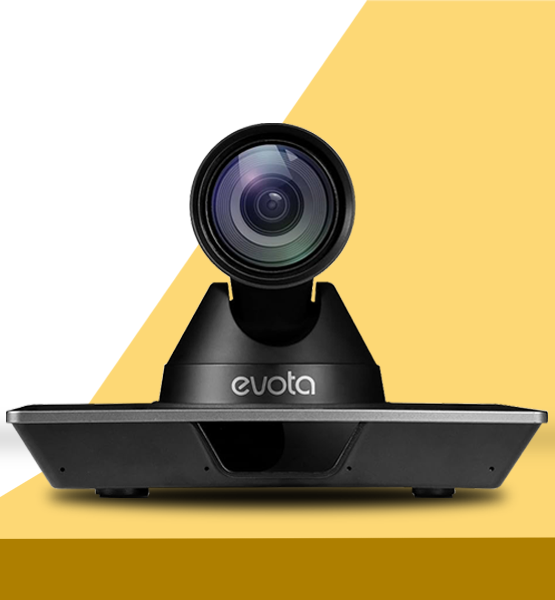

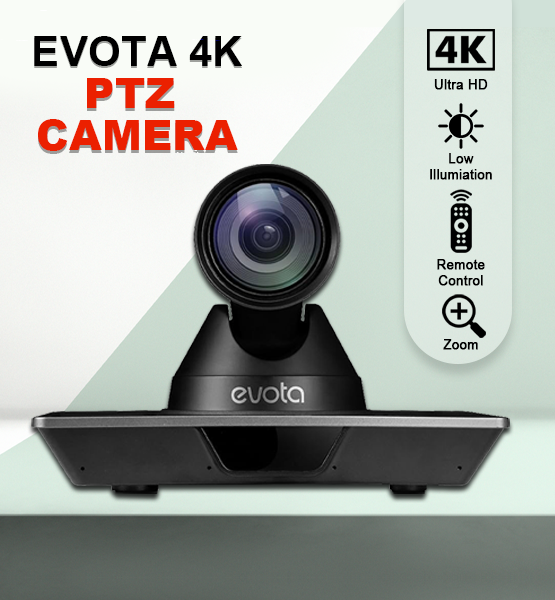

Evota C12HUL 4K PTZ Camera Description
the Evota C12HUL 4K PTZ Camera is a high-performance professional camera
engineered for video conferencing, live streaming, smart classrooms,
corporate meetings, studios, and broadcast environments.
It delivers ultra-clear 4K UHD video output with smooth and precise
pan-tilt-zoom control.
Ultra HD 4K Resolution:
Capture stunning clarity with up to 2160p @ 60fps,
ensuring professional-grade visuals for meetings and live production.

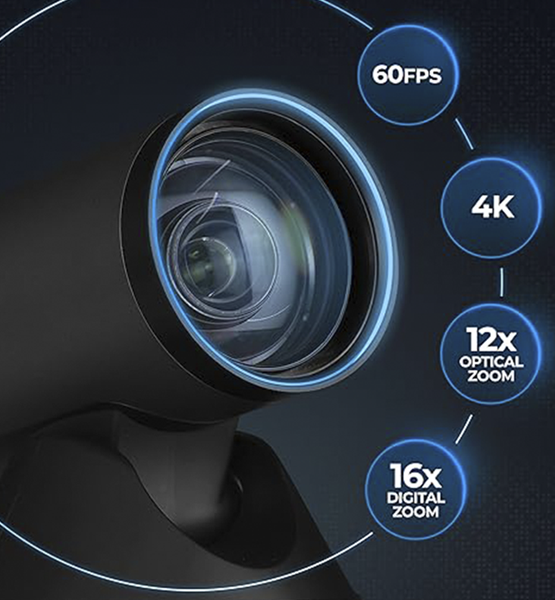

12X Optical Zoom Lens:
High-quality optical zoom maintains sharpness and detail,
making it ideal for large conference rooms, auditoriums, and lecture halls.
Exceptional Low-Light Performance:
Advanced CMOS sensor with 0.05 Lux sensitivity
delivers clean images even in low-light conditions.
Smooth & Silent PTZ Control:
Wide pan and tilt angles allow accurate positioning,
programmable presets, and smooth tracking.

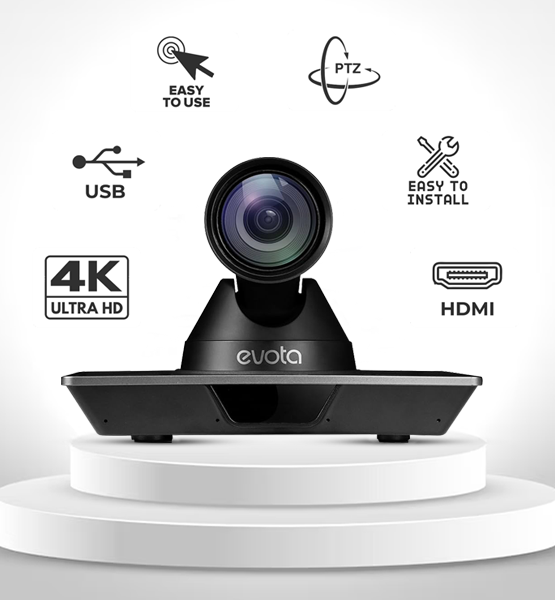

Multiple Connectivity Options:
HDMI, USB 3.0, LAN, RS-232, and 3G-SDI ensure seamless integration
witd AV systems and streaming platforms.
Wide OS Compatibility:
Fully compatible with Windows, macOS, Linux, and Android
for plug-and-play operation.
Evota C12HUL 4K PTZ Camera Specifications
| Model | Evota C12HUL |
| Camera Type | 4K PTZ Camera |
| Video Resolution | 2160p@60fps, 1080p@60fps, 720p@60fps |
| Video Compression | H.264, H.264 SVC, H.265, MJPEG |
| Optical Zoom | 12X (4.4mm – 52.8mm, F1.8 – F2.6) |
| Digital Zoom | 16X |
| Minimum Illumination | 0.05 Lux (F1.8, AGC ON) |
| Sensor | 1/2.5″ CMOS, 8.51MP |
| Pan Range | ±170° |
| Tilt Range | -30° to +30° |
| Horizontal FOV | 71° – 8.2° |
| Vertical FOV | 42.7° – 4.5° |
| Interfaces | HDMI, USB 3.0, LAN, RS-232, 3G-SDI, Line In |
| Preset Positions | 255 |
| Power Supply | DC 12V |
| Power Consumption | 12W (Max) |
| Operating Temperature | -10°C to 40°C |
| Dimensions | 200 × 176 × 130 mm |
| Net Weight | 1.41 kg |
